1424037 | Phoenix Contact

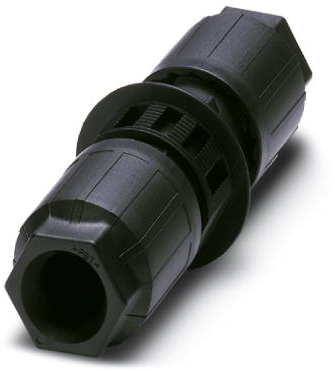

Cable connector, 3 pole, straight, 1.0-2.5 mm², cable Ø 9 to 14 mm, IP66/IP68/IP69K, 1424037
Unit Price (€ / pc.)
14.6251 € *
Available: 0 pcs.
Available in 10 days: 4 pcs.
Leadtime: 1 Week **
Conductor connector, 1424037, Phoenix Contact
Conductor connector, QUICKON connection, Number of positions: 3+PE, 1-2.5 mm², 690 V, 20 A, Black, With two QUICKON nuts, External cable diameter: 9-14 mm, QUICKON fast connection
Features
- Innovative and time saving - QUICKON fast connection for time saving of up to 80 % for on-site connection
- Robust throughout: housing with IP68/IP69K and IK07 protection for a wide range of applications
- Safer connection with mechanical coding to protect against mismatching, and touch-proof protection in accordance with DIN EN 0105
- Easy and safe - with the cable connector, you can repair or extend cables quickly, in combination with the connector as well as the coupling connection
Technical specifications
| Ausführung | Kabelverbinder | |
| Polzahl | 3-polig | |
| Bauform | gerade | |
| Anschluss | QUICKON | |
| Leiterquerschnitt | 1,0-2,5 mm² | |
| Kabeldurchmesser | 9 bis 14 mm | |
| Farbe | schwarz | |
| Schutzart (IP) | IP66/IP68/IP69K | |
| Nennspannung IEC | 690 V | |
| Nennspannung UL/CSA | 600 V | |
| Nennstrom IEC | 20 A | |
| Nennstrom UL/CSA | 12 A |
Download
Logistics
| Ursprungsland | PL |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
