3240085 | Phoenix Contact
Uninsulated ring cable lug, 2.6-6.0 mm², AWG 14 to 10, 6.5 mm, M6, metal, 3240085
Unit Price (€ / pc.)
0.2487 € *
Available: 0 pcs.
Available in 10 days: 42,200 pcs.
Leadtime: 2 Weeks **
Total Price:
12.44 € *
Price list
Quantity
Price per unit*
50 pcs.
0.2487 €
100 pcs.
0.2166 €
500 pcs.
0.2011 €
*incl. VAT plus shipping costs
**Subject to prior sale

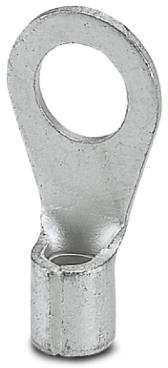

Ring cable lug C-RC 6/M6 DIN
Ring cable lug, uninsulated, 2,6 - 6 mm², M6
The technical characteristics of 3240085 from Phoenix Contact at a glance
- Item description: C-RC 6/M6 DIN
- Product Type Name: Connector
- metric connection thread dimension: M6
Technical specifications
| Version | Ringkabelschuh | |
| AWG cross-section | AWG 14 bis 10 | |
| Colour | metall | |
| Thread size | M6 | |
| Isolated | No | |
| Cable cross-section | 2,6-6,0 mm² | |
| Hole diameter | 6.5 mm | |
| Material | Kupfer, verzinnt | |
| max. operating temperature | 110 °C | |
| Nominal size according to DIN | DIN 46234 |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
