3240094 | Phoenix Contact

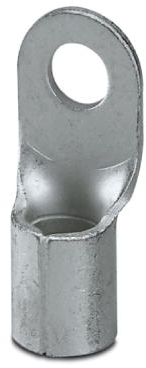

Uninsulated ring cable lug, 16 mm², AWG 6, 5.3 mm, M5, metal, 3240094
Unit Price (€ / pc.)
0.595 € *
Available: 0 pcs.
Leadtime: 5 Weeks **
Ring cable lug C-RC 1/M5 DIN
Ring cable lug, uninsulated, 0,5 - 1 mm², M5
The technical characteristics of 3240073 from Phoenix Contact at a glance
- Item description: C-RC 1/M5 DIN
- Product Type Name: Connector
- metric connection thread dimension: M5
Technical specifications
| Ausführung | Ringkabelschuh | |
| AWG-Leiterquerschnitt | AWG 6 | |
| Farbe | metall | |
| Gewindegröße | M5 | |
| Isoliert | No | |
| Leiterquerschnitt | 16 mm² | |
| Lochdurchmesser | 5.3 mm | |
| Material | Kupfer, verzinnt | |
| max. Temperatur | 110 °C | |
| Nenngröße nach DIN | DIN 46234 |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
