3240106 | Phoenix Contact

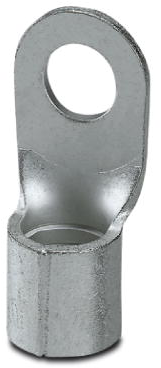

Uninsulated ring cable lug, 35 mm², AWG 2, 8.4 mm, M8, metal, 3240106
Unit Price (€ / pc.)
1.0591 € *
Available: 80 pcs.
Available in 10 days: 10,350 pcs.
Leadtime: 2 Weeks **
Total Price:
1.06 € *
Price list
Quantity
Price per unit*
1 pcs.
1.0591 €
10 pcs.
0.9758 €
50 pcs.
0.8925 €
100 pcs.
0.7973 €
*incl. VAT plus shipping costs
**Subject to prior sale
Ring cable lug C-RCI 2,5/M3,5
Ring cable lug, blue, 1,5 - 2,5 mm², M3,5
The technical characteristics of 3240022 from Phoenix Contact at a glance
- Product compliant (following DIN): No
- Product Type Name: Connector
- Insulation available: Yes
- Flange shape: Ring shape
- Item description: C-RCI 2,5/M3,5
- max. area of the nominal cross section: 2.5 mm²
- min. Nominal cross section: 1.5 mm²
- metric connection thread dimension: M3,5
Technical specifications
| Version | ring cable lug | |
| AWG cross-section | AWG 2 | |
| Colour | metal | |
| Thread size | M8 | |
| Isolated | No | |
| Cable cross-section | 35 mm² | |
| Hole diameter | 8.4 mm | |
| Material | copper, tin-plated | |
| max. operating temperature | 110 °C | |
| Nominal size according to DIN | DIN 46234 |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
