3240116 | Phoenix Contact
Uninsulated ring cable lug, 70 mm², AWG 2, 8.4 mm, M8, metal, 3240116
Unit Price (€ / pc.)
2.3919 € *
Available: 96 pcs.
Available in 10 days: 7,200 pcs.
Leadtime: 2 Weeks **
Total Price:
2.39 € *
Price list
Quantity
Price per unit*
1 pcs.
2.3919 €
10 pcs.
2.2015 €
50 pcs.
1.9992 €
100 pcs.
1.8088 €
*incl. VAT plus shipping costs
**Subject to prior sale

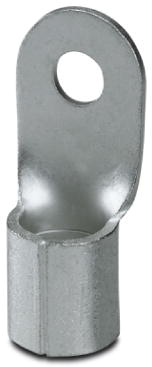

Ring cable lug C-RC 70/M8 DIN
Ring cable lug, uninsulated, 70 mm², M8
The technical characteristics of 3240116 from Phoenix Contact at a glance
- Product Type Name: Connector
- Item description: C-RC 70/M8 DIN
- metric connection thread dimension: M8
Technical specifications
| Version | ring cable lug | |
| AWG cross-section | AWG 2 | |
| Colour | metal | |
| Thread size | M8 | |
| Isolated | No | |
| Cable cross-section | 70 mm² | |
| Hole diameter | 8.4 mm | |
| Material | copper, tin-plated | |
| max. operating temperature | 110 °C | |
| Nominal size according to DIN | DIN 46234 |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
