3240121 | Phoenix Contact

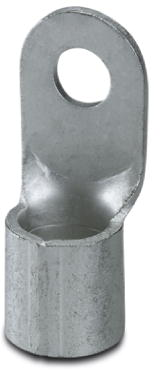

Uninsulated ring cable lug, 95 mm², AWG 3, 10.5 mm, M10, metal, 3240121
Unit Price (€ / pc.)
3.0226 € *
Available: 0 pcs.
Available in 10 days: 1,060 pcs.
Leadtime: 2 Weeks **
Ring cable lug C-RCEI 6/M8
Ring cable lug, yellow, 4 - 6 mm², M8, with inserted copper sleeve, for insulation crimping
The technical characteristics of 3241213 from Phoenix Contact at a glance
- Item description: C-RCEI 6/M8
- Insulation available: Yes
- Product compliant (following DIN): No
- Product Type Name: Connector
- Flange shape: Ring shape
- max. area of the nominal cross section: 6 mm²
- min. Nominal cross section: 4 mm²
- metric connection thread dimension: M8
Technical specifications
| Version | Ringkabelschuh | |
| AWG cross-section | AWG 3 | |
| Colour | metall | |
| Thread size | M10 | |
| Isolated | No | |
| Cable cross-section | 95 mm² | |
| Hole diameter | 10.5 mm | |
| Material | Kupfer, verzinnt | |
| max. operating temperature | 110 °C | |
| Nominal size according to DIN | DIN 46234 |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
