3240546 | Phoenix Contact

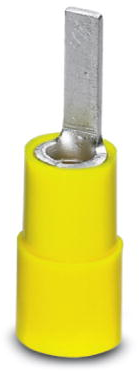

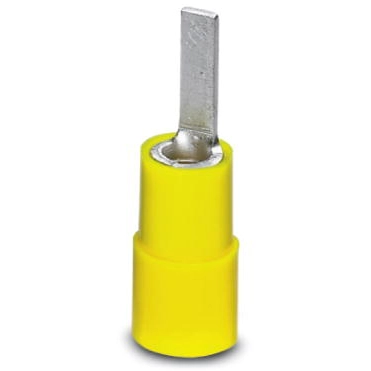

Insulated pin cable lug, 4.0-6.0 mm², AWG 12 to 10, 2.8 mm, yellow, 3240546
Unit Price (€ / pc.)
0.3046 € *
Available: 0 pcs.
Available in 10 days: 6,600 pcs.
Leadtime: 1 Week **
Ring cable lug C-RCEI 1,5/M4
Ring cable lug, red, 0,5 - 1,5 mm², M4, with inserted copper sleeve, for insulation crimping
The technical characteristics of 3241203 from Phoenix Contact at a glance
- Item description: C-RCEI 1,5/M4
- Insulation available: Yes
- Product compliant (following DIN): No
- Product Type Name: Connector
- Flange shape: Ring shape
- max. area of the nominal cross section: 1.5 mm²
- min. Nominal cross section: 0.5 mm²
- metric connection thread dimension: M4
Technical specifications
| Ausführung | Stiftkabelschuh | |
| AWG-Leiterquerschnitt | AWG 12 bis 10 | |
| Farbe | gelb | |
| Isolationsmaterial | PA | |
| Isoliert | Yes | |
| Leiterquerschnitt | 4,0-6,0 mm² | |
| Material | Kupfer | |
| max. Temperatur | 105 °C | |
| Stiftdurchmesser | 2.8 mm |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
