3240570 | Phoenix Contact

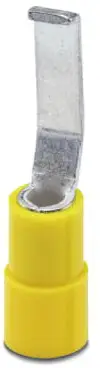

Insulated pin cable lug, 4.0-6.0 mm², AWG 12 to 10, 4.6 mm, yellow, 3240570
Unit Price (€ / pc.)
0.3213 € *
Available: 0 pcs.
Available in 10 days: 158,050 pcs.
Leadtime: 1 Week **
Cable lug C-BCI 2,5/2,8
Flat pinCable lug, with nose, soldered neck, blue, 1,5 - 2,5 mm², Pen width: 2,8 mm, Easy ladder insertion due to Easy-Entry, for horizontal and vertical crimping with CRIMPFOX-RCI 6
The technical characteristics of 3240046 from Phoenix Contact at a glance
- Product compliant (following DIN): No
- Product Type Name: Connector
- Insulation available: Yes
- Flange shape: Flat pinCable lug
- Item description: C-BCI 2,5/2,8
- max. area of the nominal cross section: 2.5 mm²
- min. Nominal cross section: 1.5 mm²
Further links to Phoenix Contact 3240046
Under the following links you will find more information about Phoenix Contact 3240046
Technical specifications
| Version | pin cable lug | |
| AWG cross-section | AWG 12 to 10 | |
| Colour | yellow | |
| Material Insulation | PA | |
| Isolated | Yes | |
| Cable cross-section | 4.0-6.0 mm² | |
| Material | copper, tin-plated | |
| max. operating temperature | 105 °C | |
| Pin diameter | 4.6 mm |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
