3071401 | Phoenix Contact

Cable management system, with swivel joint for opening, (L x W x H) 218 x 68 x 140.5 mm, PC, gray, for rewiring, 3071401

Order No.: 60P7260
EAN: 4055626289175
MPN:
3071401
CGSA 50
Series: CGSA
Phoenix Contact
3071401 Phoenix Contact Cable Management Accessories Image 1
3071401 Phoenix Contact Cable Management Accessories Image 2
Image may differ
Unit Price (€ / pc.)
64.6170 € *
Available: 0 pcs.
Available in 10 days: 269 pcs.
Leadtime: 2 Weeks **
Total Price:
64.62 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
64.6170 €

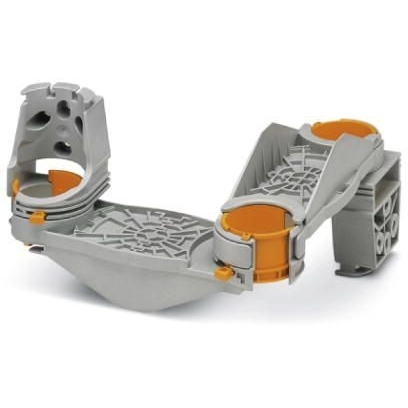

Cable routing system, 3071401, Phoenix Contact

Cable routing system, with swivel joint for opening, Length: 218 mm, Width: 68 mm, Height: 140.5 mm, Diameter: 42 mm, Color: gray

Features

  • Subsequent wiring is easy, thanks to swivel joint openings that can be operated without tools
  • Easily plan cable harnesses: the cable length is predefined through the swivel arm
  • Integrated flanges with strain relief make assembly quick and easy
  • Mechanical cable protection and bundling, thanks to protective covers that can be attached without tools
  • Route pre-assembled cables and conductors easily, thanks to the patent-pending swivel joint
  • High-grade elastic and mechanically resilient plastic
Technical specifications
Version with swivel joint for opening
Width 68 mm
Colour gray
Suitable for rewiring
Height 140.5 mm
Length 218 mm
Material PC
max. operating temperature 85 °C
min. operating temperature -60 °C
Accessory Type Cable management system
Logistics
Country of origin PL
Customs tariff number 39259020
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
