1703962 | Phoenix Contact
Plug part, 5 pole, pitch 10.16 mm, 0.75-16 mm², AWG 18-6, straight, 76 A, 1000 V, screw connection, 1703962
Unit Price (€ / pc.)
17.8024 € *
Available: 0 pcs.
Leadtime: 6 Weeks **

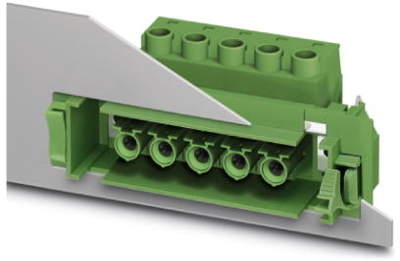

Connecting Block, 1703962, Phoenix Contact
Feed-through connector, nominal current: 76 A, rated voltage (III/2): 1000 V, nominal cross section: 16 mm², number of positions: 5, pitch: 10.16 mm, connection method: Screw connection with tension sleeve, color: green, contact surface: Silver
FEATURES
- Well-known connection principle allows worldwide use
- Low temperature rise, thanks to maximum contact force
- Allows connection of two conductors
- Flange system enables secure fixing to the housing panel by means of tool-free snap-in locking or screws
Technical Data
- Rated current: 76 A
- Design: Straight
- Pole number: 8-pole
- Contact spacing: 10.16 mm
Technical specifications
| Version | socket | |
| AWG cross-section | AWG 18-6 | |
| Design | straight | |
| Contact connection | screw connection | |
| Cable cross-section | 0.75-16 mm² | |
| Rated voltage | 1000 V | |
| Rated current | 76 A | |
| Pin number | 5 pole | |
| Grid | 10.16 mm |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
