1864066 | Phoenix Contact
Direct connector, 5 pole, pitch 5 mm, 0.2-2.5 mm², AWG 24-12, straight, 12 A, 320 V, push-in, 1864066
Unit Price (€ / pc.)
4.9147 € *
Available: 0 pcs.
Leadtime: 6 Weeks **
Total Price:
4.91 € *
Price list
Quantity
Price per unit*
1 pcs.
4.9147 €
10 pcs.
4.5220 €
50 pcs.
4.1174 €
100 pcs.
3.7128 €
*incl. VAT plus shipping costs
**Subject to prior sale

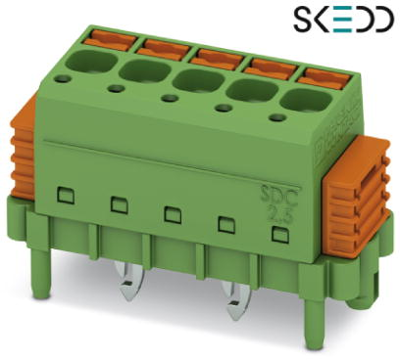

Connecting Block, 1864066, Phoenix Contact
PCB direct plug, nominal current: 12 A, rated voltage (III/2): 320 V, nominal cross section: 2.5 mm², number of positions: 5, pitch: 5 mm, connection method: Push-in spring connection, color: green, contact surface: Tin, mounting: SKEDD - Direct plug-in technology, pin layout: Zigzag pinning W, solder pin [P]: 4.7 mm
FEATURES
- SKEDD direct plug-in technology enables flexible positioning on the PCB
- Reduced component and process costs: simple insertion by hand and vibration-resistant connection
- Wide range of applications, thanks to suitability for PCBs with chemically tin-plated or Hot Air Leveling (HAL) surface
- Time saving push-in connection, tools not required
Technical Data
- Rated current: 12 A
- Design: Straight
- Pole number: 14-pole
- Contact spacing: 5 mm
Technical specifications
| AWG-Leiterquerschnitt | AWG 24-12 | |
| Bauform | gerade | |
| Drahtdurchmesser | 2,4 mm | |
| Kontaktanschluss | Push-in | |
| Leiterquerschnitt | 0,2-2,5 mm² | |
| Nennspannung | 320 V | |
| Nennstrom | 12 A | |
| Polzahl | 5-polig | |
| Rastermaß | 5 mm |
Download
Logistics
| Ursprungsland | PL |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
