1607322 | Phoenix Contact
Pin contact insert, VC3, 8 pole, equipped, screw connection, with PE contact, 1607322
Unit Price (€ / pc.)
31.1780 € *
Available: 0 pcs.
Available in 10 days: 45 pcs.
Leadtime: 2 Weeks **
Total Price:
31.18 € *
Price list
Quantity
Price per unit*
1 pcs.
31.1780 €
10 pcs.
29.0003 €
25 pcs.
26.6798 €
50 pcs.
24.2760 €
*incl. VAT plus shipping costs
**Subject to prior sale

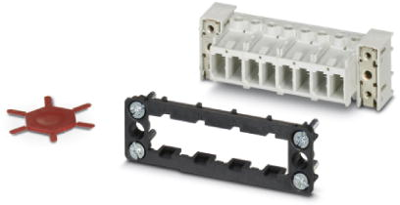

Contact insert module, 1607322, Phoenix Contact
Contact insert set, Type: VC3, Housing material: PA, Number of positions: 8, Min. conductor cross section: 0.2 mm², Max. conductor cross section: 4 mm², Rated voltage: 400, Rated current: 20 A, Type of contact: Pin. Connectors may only be connected/disconnected when under no load.
Features
- Compact design
- Universal connection
- Proven COMBICON technology
- Can be keyed to prevent incorrect connection
Technical specifications
| Version | pin insert | |
| Additional parts | equipped | |
| Shell size | VC3 | |
| Contact connection | screw connection | |
| PE contact | Yes | |
| Pin number | 8 pole |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
