1607359 | Phoenix Contact
Pin contact insert, VC2, 18 pole, equipped, screw connection, with PE contact, 1607359
Unit Price (€ / pc.)
32.0110 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
32.01 € *
Price list
Quantity
Price per unit*
1 pcs.
32.0110 €
10 pcs.
29.7738 €
25 pcs.
27.3938 €
50 pcs.
24.9305 €
*incl. VAT plus shipping costs
**Subject to prior sale

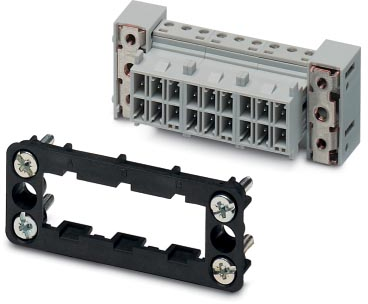

Contact insert module, 1607359, Phoenix Contact
Contact insert set, Type: VC2, Housing material: PA, Number of positions: 18, Min. conductor cross section: 0.14 mm², Max. conductor cross section: 1.5 mm², Rated voltage: 250, Rated current: 10 A, Type of contact: Pin. Connectors may only be connected/disconnected when under no load.
Features
- Compact design
- Universal connection
- Proven COMBICON technology
- Can be keyed to prevent incorrect connection
Technical specifications
| Version | Stifteinsatz | |
| Additional parts | bestückt | |
| Shell size | VC2 | |
| Contact connection | Schraubanschluss | |
| PE contact | Yes | |
| Pin number | 18-polig |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
