1855018 | Phoenix Contact

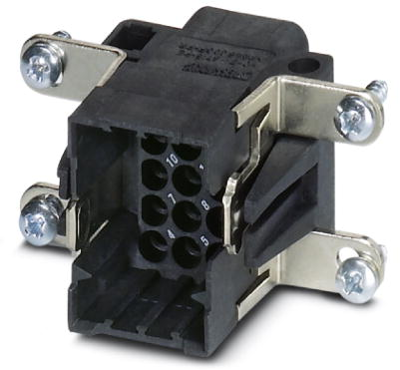

Pin contact insert, VC1, 15 pole, unequipped, crimp connection, with PE contact, 1855018

Order No.: 62P4872
EAN: 4017918159399
MPN:
1855018
VC-D1-ST15-PE
Series: VC-D
1855018 Phoenix Contact Contact Inserts
Image may differ
Unit Price (€ / pc.)
9.5319 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
9.53 € *
Price list
Quantity
Price per unit*
1 pcs.
9.5319 €
10 pcs.
8.7584 €
50 pcs.
7.9849 €
100 pcs.
7.1757 €
*incl. VAT plus shipping costs
**Subject to prior sale

Contact insert module, 1855018, Phoenix Contact

Contact insert, Type: VC1, Housing material: PA, Number of positions: 15, Min. conductor cross section: 0.14 mm², Max. conductor cross section: 1.5 mm², Rated voltage: 250, Rated current: 10 A, Connection method: Crimp connection, Type of contact: Pin. Connectors may only be connected/disconnected when under no load.

Features

  • Contact carriers have two further capacitive PE contacts
  • Pin and socket contacts can be used on both the plug and device sides
Technical specifications
Ausführung Stifteinsatz
Bestückung unbestückt
Gehäusegröße VC1
Kontaktanschluss Crimpanschluss
PE-Kontakt Yes
Polzahl 15-polig
Logistics
Ursprungsland PL
Zolltarifnummer 85366990
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
