1884885 | Phoenix Contact

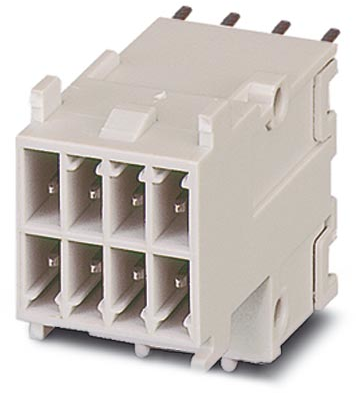

Pin contact insert, 8 pole, equipped, PCB connection, 1884885

Order No.: 62P4831
EAN: 4017918170769
MPN:
1884885
VC-AMLV 8
Series: VC-AMLV
1884885 Phoenix Contact Contact Inserts
Image may differ
Unit Price (€ / pc.)
5.3669 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
5.37 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
5.3669 €

Contact insert module, 1884885, Phoenix Contact

Contact insert, Housing material: Polyamide, Color: light gray, Number of positions: 8, Rated voltage: 160, Rated current: 10 A, Connection method: PCB connection, Type of contact: Pin. Connectors may only be connected/disconnected when under no load.

Features

  • Compact design
  • Direct PCB connection
  • Proven COMBICON technology
  • Can be keyed to prevent incorrect connection
Technical specifications
Ausführung Stifteinsatz
Bestückung bestückt
Kontaktanschluss Leiterplattenanschluss
PE-Kontakt No
Polzahl 8-polig
Logistics
Ursprungsland PL
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
