1004381 | Phoenix Contact

Name: Receptacle, 0.34-1.0 mm², AWG 22-17, crimp connection, silver-plated, 1004381
Brand: Phoenix Contact
SKU: 65P2131
Price: 0.31 EUR
Availability: OutOfStock

Receptacle, 0.34-1.0 mm², AWG 22-17, crimp connection, silver-plated, 1004381

Order No.: 65P2131

EAN: 4055626472577

MPN:

1004381

CK1,6-BR-1,00BU OIC AG

Series: CK

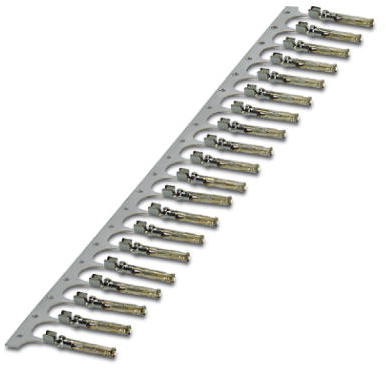

Image may differ

Key Specification:

Ausführung Buchsenkontakt

Leiterquerschnitt 0,34-1,0 mm²

AWG-Leiterquerschnitt AWG 22-17

Kontaktanschluss Crimpanschluss

Kontaktmaterial Kupferlegierung

Download Datasheet Technical specifications

Unit Price (€ / pc.)

0.3094 € *

Available: 0 pcs.

Available in 10 days: 364,000 pcs.

Leadtime: 1 Week **

Total Price:

2,165.80 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Socket contact, 1004381, Phoenix Contact

Crimp contact, Contact diameter: 1.6 mm, Rolled, Pin, Contact material: Cu alloy, Nickel-plated, Contact surface: Silver-plated, Connection cross section: 0.34 mm² - 1 mm², AWG 22 - 17, Taped products

Technical specifications

	Ausführung	Buchsenkontakt
	AWG-Leiterquerschnitt	AWG 22-17
	Isolationsdurchmesser	2-2,6 mm
	Kontaktanschluss	Crimpanschluss
	Kontaktmaterial	Kupferlegierung
	Kontaktoberfläche	versilbert
	Leiterquerschnitt	0,34-1,0 mm²
