1050210 | Phoenix Contact

Pin contact, 2.5-4.0 mm², crimp connection, nickel-plated/gold-plated, 1050210

Order No.: 64P0391
EAN: 4055626743585
MPN:
1050210
SF-20KP013
Series: SF
1050210 Phoenix Contact Crimp Contacts
Image may differ
Unit Price (€ / pc.)
1.3447 € *
Available: 0 pcs.
Available in 10 days: 200 pcs.
Leadtime: 2 Weeks **
Total Price:
1.34 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
1.3447 €

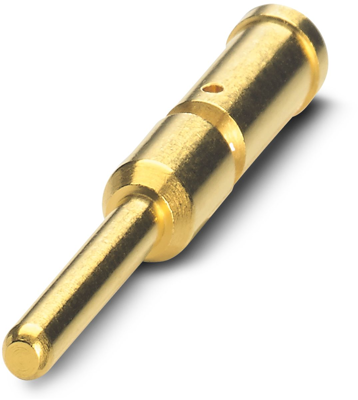

Crimp contact, 1050210, Phoenix Contact

Crimp contact, pin, turned, single contact, contact diameter: 2 mm, crimp range: 2.5 mm²-4 mm².

Features

  • High tensile strength of the connection
  • Low contact resistance
  • Easy production monitoring
  • Vibration- and temperature-resistant assembly
Technical specifications
Version Stiftkontakt
Contact connection Crimpanschluss
Contact material Kupfer-Zink
contact surface vernickelt/vergoldet
Cable cross-section 2,5-4,0 mm²
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
