1237993 | Phoenix Contact

Receptacle, 0.06-0.25 mm², crimp connection, nickel-plated/gold-plated, 1237993

Order No.: 64P0372
EAN: 4063151462116
MPN:
1237993
SF-06KS0,06-0,25
Series: SF
1237993 Phoenix Contact Crimp Contacts
Image may differ
Unit Price (€ / pc.)
1.5827 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
949.62 € *
*incl. VAT plus shipping costs
**Subject to prior sale
600 pcs.
1.5827 €

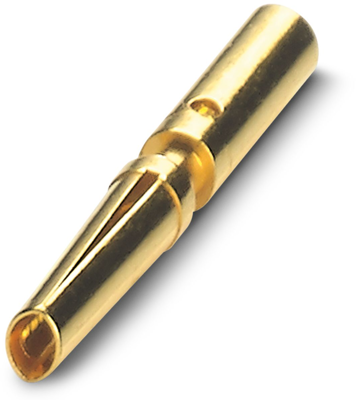

Crimp contact, 1237993, Phoenix Contact

Crimp contact, socket, turned, contact diameter: 0.6 mm, crimp range: 0.06 mm²-0.25 mm². Item is lead-free in accordance with RoHS II without Exemption 6c (Pb < 0.1 %).

Features

  • High tensile strength of the connection
  • Low contact resistance
  • Easy production monitoring
  • Vibration- and temperature-resistant assembly
Technical specifications
Ausführung Buchsenkontakt
Kontaktanschluss Crimpanschluss
Kontaktmaterial Kupfer-Zink
Kontaktoberfläche vernickelt/vergoldet
Leiterquerschnitt 0,06-0,25 mm²
Logistics
Ursprungsland DE
Zolltarifnummer 85366990
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
