1238328 | Phoenix Contact

Pin contact, 0.08-0.56 mm², crimp connection, nickel-plated/gold-plated, 1238328

Order No.: 64P0214
EAN: 4063151461812
MPN:
1238328
RC-10KP0,08-0,56/VPE500
Series: RC
Phoenix Contact
1238328 Phoenix Contact Crimp Contacts
Image may differ
Unit Price (€ / pc.)
0.4284 € *
Available: 0 pcs.
Leadtime: 5 Weeks **
Total Price:
0.43 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
0.4284 €

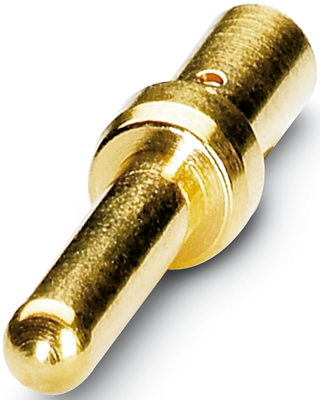

Crimp contact, 1238328, Phoenix Contact

Crimp contact, pin, turned, contact diameter: 1 mm, crimp range: 0.08 mm²-0.56 mm². Item is lead-free in accordance with RoHS II without Exemption 6c (Pb < 0.1 %).

Features

  • High tensile strength of the connection
  • Low contact resistance
  • Easy production monitoring
  • Vibration- and temperature-resistant assembly
Technical specifications
Version pin contact
Contact connection crimp connection
Contact material Copper-Zinc
contact surface nickel-plated/gold-plated
Cable cross-section 0.08-0.56 mm²
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
