1241969 | Phoenix Contact
Pin contact, 1.5-4.0 mm², crimp connection, nickel-plated/gold-plated, 1241969
Unit Price (€ / pc.)
2.6061 € *
Available: 0 pcs.
Leadtime: 3 Weeks **

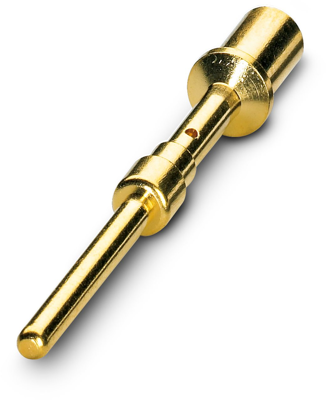

Crimp contact, 1241969, Phoenix Contact
Crimp contact, pin, turned, single contact, contact diameter: 2 mm, crimp range: 1.5 mm²-4 mm². Item is lead-free in accordance with RoHS II without Exemption 6c (Pb < 0.1 %).
Features
- High tensile strength of the connection
- Low contact resistance
- Easy production monitoring
- Vibration- and temperature-resistant assembly
Technical specifications
| Version | pin contact | |
| Insulation diameter | 2.85-5.3 mm | |
| Contact connection | crimp connection | |
| Contact material | Copper-Zinc | |
| contact surface | nickel-plated/gold-plated | |
| Cable cross-section | 1.5-4.0 mm² |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
