1243356 | Phoenix Contact

Pin contact, 0.25-2.5 mm², crimp connection, nickel-plated/gold-plated, 1243356

Order No.: 64P0449
EAN: 4063151461256
MPN:
1243356
ST-20KP0,25-2,50/VPE1000
Series: ST
1243356 Phoenix Contact Crimp Contacts
Image may differ
Unit Price (€ / pc.)
1.2257 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
1,225.70 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1000 pcs.
1.2257 €

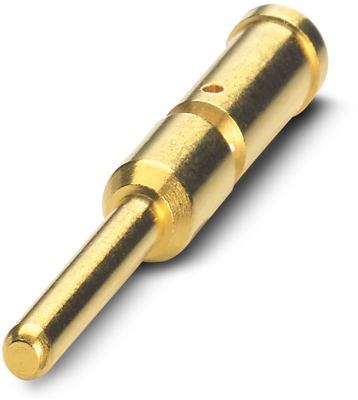

Crimp contact, 1243356, Phoenix Contact

Crimp contact, pin, turned, contact diameter: 2 mm, crimp range: 0.25 mm²-2.5 mm². Item is lead-free in accordance with RoHS II without Exemption 6c (Pb < 0.1 %).

Features

  • High tensile strength of the connection
  • Low contact resistance
  • Easy production monitoring
  • Vibration- and temperature-resistant assembly
Technical specifications
Version Stiftkontakt
Contact connection Crimpanschluss
Contact material Kupfer-Zink
contact surface vernickelt/vergoldet
Cable cross-section 0,25-2,5 mm²
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
