1244461 | Phoenix Contact

Receptacle, 0.25-2.5 mm², crimp connection, nickel-plated/gold-plated, 1244461

Order No.: 64P0411
EAN: 4063151456016
MPN:
1244461
SH-20KS0,25-2,50
Series: SH
Phoenix Contact

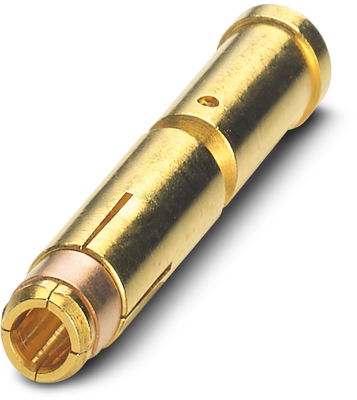

1244461 Phoenix Contact Crimp Contacts Image 1
1244461 Phoenix Contact Crimp Contacts Image 2
Image may differ
Unit Price (€ / pc.)
2.7846 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
2.78 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
2.7846 €

Crimp contact, 1244461, Phoenix Contact

Crimp contact, socket, turned, contact diameter: 2 mm, crimp range: 0.25 mm²-2.5 mm². Item is lead-free in accordance with RoHS II without Exemption 6c (Pb < 0.1 %).

Features

  • High tensile strength of the connection
  • Low contact resistance
  • Easy production monitoring
  • Vibration- and temperature-resistant assembly
Technical specifications
Version receptacle
Insulation diameter 2.3-3.9 mm
Contact connection crimp connection
Contact material Copper-Zinc
contact surface nickel-plated/gold-plated
Cable cross-section 0.25-2.5 mm²
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
