1244971 | Phoenix Contact

Pin contact, 0.08-0.56 mm², crimp connection, nickel-plated/gold-plated, 1244971

Order No.: 64P0226
EAN: 4063151458485
MPN:
1244971
RC-1RKP0,08-0,56
Series: RC
Phoenix Contact

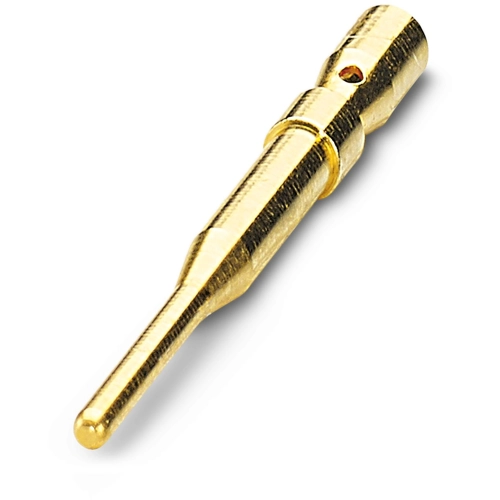

1244971 Phoenix Contact Crimp Contacts Image 1
1244971 Phoenix Contact Crimp Contacts Image 2
Image may differ
Unit Price (€ / pc.)
1.4994 € *
Available: 0 pcs.
Leadtime: 6 Weeks **
Total Price:
1.50 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
1.4994 €

Crimp contact, 1244971, Phoenix Contact

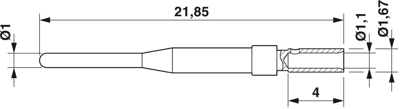

Crimp contact, pin, turned, contact diameter: 1 mm, crimp range: 0.08 mm²-0.56 mm². Item is lead-free in accordance with RoHS II without Exemption 6c (Pb < 0.1 %).

Features

  • High tensile strength of the connection
  • Low contact resistance
  • Easy production monitoring
  • Vibration- and temperature-resistant assembly
Technical specifications
Version pin contact
Insulation diameter 1.1-1.67 mm
Contact connection crimp connection
Contact material Copper-Zinc
contact surface nickel-plated/gold-plated
Cable cross-section 0.08-0.56 mm²
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
