1273617 | Phoenix Contact

Pin contact, 1.5 mm², AWG 16, crimp connection, silver-plated, 1273617

Order No.: 64P0061
EAN: 4063151465612
MPN:
1273617
CK2,5-ED 1,50M-S AG
Series: CK
Phoenix Contact

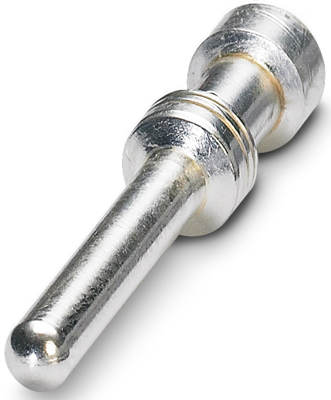

1273617 Phoenix Contact Crimp Contacts Image 1

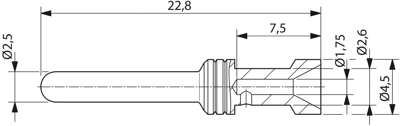

1273617 Phoenix Contact Crimp Contacts Image 2
Image may differ
Unit Price (€ / pc.)
0.4760 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
0.48 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
0.4760 €

Crimp contact, 1273617, Phoenix Contact

Crimp contact, contact diameter: 2.5 mm, pin, contact material: Copper alloy, lead-free, contact surface: silver-plated, connection cross section: 1.5 mm²-1.5 mm², AWG 16.

Technical specifications
Version pin contact
AWG cross-section AWG 16
Insulation diameter 1.75-4.5 mm
Contact connection crimp connection
Contact material copper alloy
contact surface silver-plated
Cable cross-section 1.5 mm²
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
