1409208 | Phoenix Contact

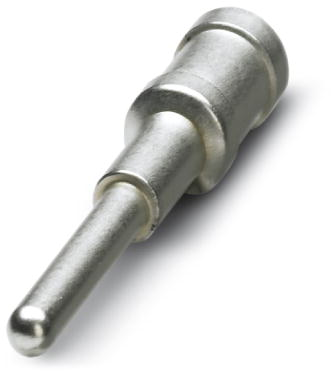

Pin contact, 4.0 mm², AWG 12, crimp connection, silver-plated, 1409208
Unit Price (€ / pc.)
1.0829 € *
Available: 0 pcs.
Available in 10 days: 43,390 pcs.
Leadtime: 1 Week **
Total Price:
1.08 € *
Price list
Quantity
Price per unit*
1 pcs.
1.0829 €
10 pcs.
0.9877 €
50 pcs.
0.9044 €
100 pcs.
0.8092 €
*incl. VAT plus shipping costs
**Subject to prior sale
Pin contact, 1409208, Phoenix Contact
Crimp contact, Range of articles: PRC 35, Crimp contact, max. Conductor cross section: 4 mm², Rated voltage: 690 V AC, Rated current: 32 A, Connection method: Crimp connection, Type of contact: Pin
Features
- Crimp contacts for PRC device connectors for assembly
- 3 variants for wire cross sections of 2.5 / 4.0 / 6.0 mm²
Technical specifications
| Version | pin contact | |
| AWG cross-section | AWG 12 | |
| Contact connection | crimp connection | |
| Contact material | copper alloy | |
| contact surface | silver-plated | |
| Cable cross-section | 4.0 mm² |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85389099 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
