1603321 | Phoenix Contact
Pin contact, 0.22-0.56 mm², crimp connection, nickel-plated/gold-plated, 1603321
Unit Price (€ / pc.)
0.3332 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
0.33 € *
Price list
Quantity
Price per unit*
2 pcs.
0.3332 €
10 pcs.
0.2975 €
50 pcs.
0.2606 €
100 pcs.
0.2297 €
*incl. VAT plus shipping costs
**Subject to prior sale

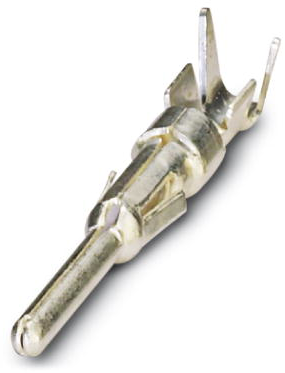

Pin contact, 1603321, Phoenix Contact
Crimp contact, Rolled, Single contact, Contact diameter: 1 mm, Crimp range: 0.22 mm² - 0.56 mm², Single contact
Features
- Crimping connection: vibration- and temperature-resistant assembly
- High tensile strength of the connection
- Low contact resistance
- Easy production monitoring
- Variable production run startup, thanks to full or semi-automation
Technical specifications
| Version | pin contact | |
| Insulation diameter | 1-1.9 mm | |
| Contact connection | crimp connection | |
| Contact material | copper zinc alloy | |
| contact surface | nickel-plated/gold-plated | |
| Cable cross-section | 0.22-0.56 mm² |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85389099 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
