1603509 | Phoenix Contact
Receptacle, 1.5-2.5 mm², AWG 16-14, crimp connection, nickel-plated/gold-plated, 1603509
Unit Price (€ / pc.)
1.2495 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
1.25 € *
Price list
Quantity
Price per unit*
1 pcs.
1.2495 €
10 pcs.
1.1543 €
50 pcs.
1.0472 €
100 pcs.
0.9401 €
*incl. VAT plus shipping costs
**Subject to prior sale

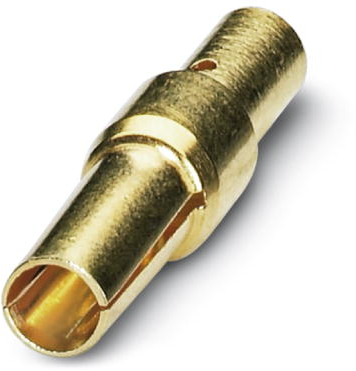

Socket contact, 1603509, Phoenix Contact
Crimp contact, Turned, Contact diameter: 2 mm, Crimp range: 1.5 mm² - 2.5 mm²
Features
- Crimping connection: vibration- and temperature-resistant assembly
- High tensile strength of the connection
- Low contact resistance
- Easy production monitoring
Technical specifications
| Version | Buchsenkontakt | |
| AWG cross-section | AWG 16-14 | |
| Insulation diameter | 2,4-3,5 mm | |
| Contact connection | Crimpanschluss | |
| Contact material | Kupfer-Zink | |
| contact surface | vernickelt/vergoldet | |
| Cable cross-section | 1,5-2,5 mm² |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85389099 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
