1603513 | Phoenix Contact
Pin contact, 1.0-1.5 mm², AWG 16-14, crimp connection, nickel-plated/gold-plated, 1603513
Unit Price (€ / pc.)
1.3328 € *
Available: 21 pcs.
Available in 10 days: 50 pcs.
Leadtime: 2 Weeks **
Total Price:
1.33 € *
Price list
Quantity
Price per unit*
1 pcs.
1.3328 €
10 pcs.
1.2257 €
50 pcs.
1.1186 €
100 pcs.
0.9996 €
*incl. VAT plus shipping costs
**Subject to prior sale

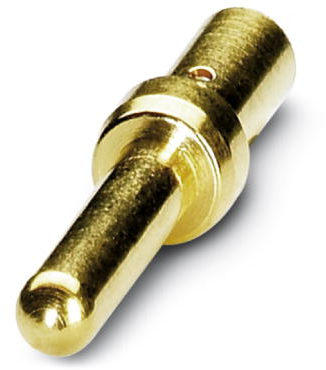

Pin contact, 1603513, Phoenix Contact
Crimp contact, Turned, Contact diameter: 2 mm, Crimp range: 1 mm² - 1.5 mm²
Features
- Crimping connection: vibration- and temperature-resistant assembly
- High tensile strength of the connection
- Low contact resistance
- Easy production monitoring
Technical specifications
| Version | pin contact | |
| AWG cross-section | AWG 16-14 | |
| Insulation diameter | 2.03-3.5 mm | |
| Contact connection | crimp connection | |
| Contact material | Copper-Zinc | |
| contact surface | nickel-plated/gold-plated | |
| Cable cross-section | 1.0-1.5 mm² |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85389099 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
