1605762 | Phoenix Contact
Receptacle, 6.0-10 mm², AWG 10-8, crimp connection, nickel-plated/gold-plated, 1605762
Unit Price (€ / pc.)
5.0575 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
5.06 € *
Price list
Quantity
Price per unit*
1 pcs.
5.0575 €
10 pcs.
4.6529 €
50 pcs.
4.2364 €
100 pcs.
3.8080 €
*incl. VAT plus shipping costs
**Subject to prior sale

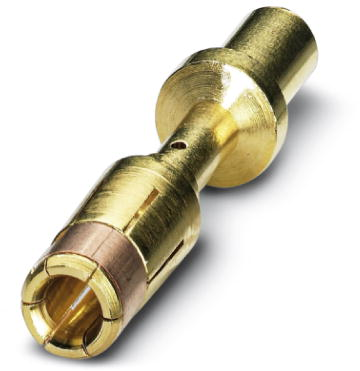

Socket contact, 1605762, Phoenix Contact
Crimp contact, Turned, Single contact, Contact diameter: 3.6 mm, Crimp range: 6 mm² - 10 mm²
Features
- Crimping connection: vibration- and temperature-resistant assembly
- High tensile strength of the connection
- Low contact resistance
- Easy production monitoring
Technical specifications
| Version | receptacle | |
| AWG cross-section | AWG 10-8 | |
| Insulation diameter | 4.5-7.9 mm | |
| Contact connection | crimp connection | |
| Contact material | Copper-Zinc | |
| contact surface | nickel-plated/gold-plated | |
| Cable cross-section | 6.0-10 mm² |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85389099 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
