1623604 | Phoenix Contact

Name: Receptacle, 0.34-0.5 mm², AWG 22-20, crimp connection, nickel-plated/gold-plated, 1623604
Brand: Phoenix Contact
SKU: 62P3955
Price: 2.83 EUR
Availability: OutOfStock

Receptacle, 0.34-0.5 mm², AWG 22-20, crimp connection, nickel-plated/gold-plated, 1623604

Order No.: 62P3955

EAN: 4055626285931

MPN:

1623604

SB-10KS002

Series: SB

Image may differ

Key Specification:

Ausführung Buchsenkontakt

Leiterquerschnitt 0,34-0,5 mm²

AWG-Leiterquerschnitt AWG 22-20

Kontaktanschluss Crimpanschluss

Kontaktmaterial Kupfer-Zink

Download Datasheet Technical specifications

Unit Price (€ / pc.)

2.8322 € *

Available: 0 pcs.

Leadtime: 4 Weeks **

Total Price:

2.83 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

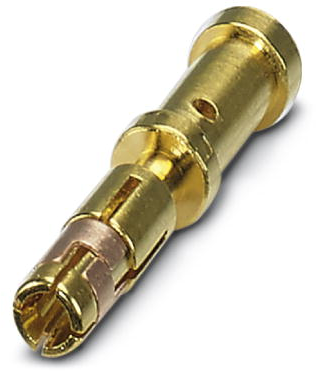

Socket contact, 1623604, Phoenix Contact

Crimp contact, Turned, Contact diameter: 1 mm, Crimp range: 0.34 mm² - 0.5 mm²

Features

Crimping connection: vibration- and temperature-resistant assembly
High tensile strength of the connection
Low contact resistance
Easy production monitoring

Technical specifications

	Ausführung	Buchsenkontakt
	AWG-Leiterquerschnitt	AWG 22-20
	Isolationsdurchmesser	0,75-2,55 mm
	Kontaktanschluss	Crimpanschluss
	Kontaktmaterial	Kupfer-Zink
	Kontaktoberfläche	vernickelt/vergoldet
	Leiterquerschnitt	0,34-0,5 mm²
