1044970 | Phoenix Contact

Crimping pliers for wire end ferrules, 0.14-10 mm², AWG 26-8, Phoenix Contact 1044970

Order No.: 64P7433
EAN: 4055626633466
MPN:
1044970
CRIMPFOX DUO 10 CUS
Series: CRIMPFOX
Phoenix Contact

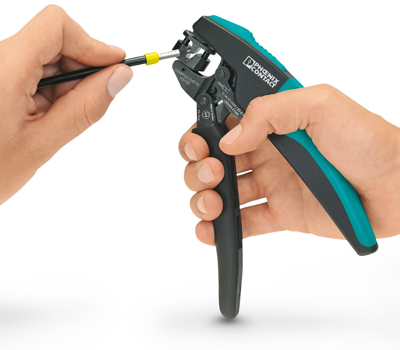

1044970 Phoenix Contact Crimping and Cable Lug Pliers Image 1

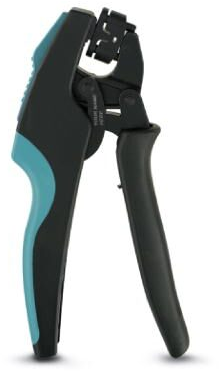

1044970 Phoenix Contact Crimping and Cable Lug Pliers Image 2

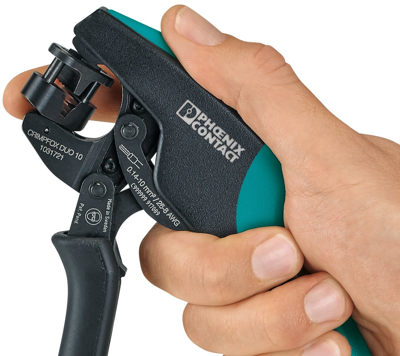

1044970 Phoenix Contact Crimping and Cable Lug Pliers Image 3

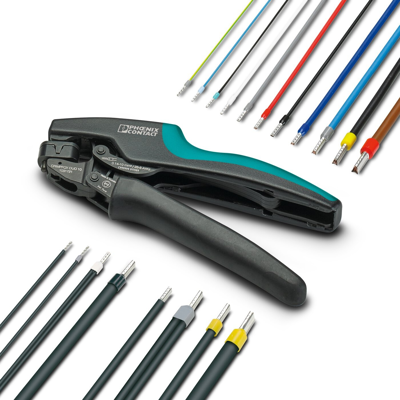

1044970 Phoenix Contact Crimping and Cable Lug Pliers Image 4

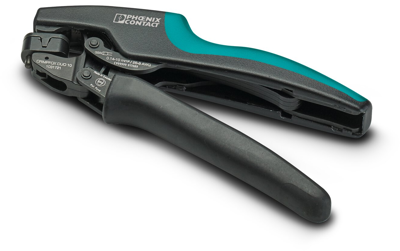

1044970 Phoenix Contact Crimping and Cable Lug Pliers Image 5
Image may differ
Unit Price (€ / pc.)
212.8553 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
212.86 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
212.8553 €

Crimping pliers, 1044970, Phoenix Contact

Crimping pliers, laser marked according to customer specifications, type of contact: insulated and uninsulated ferrules, standards/specifications: DIN 46228-1, DIN 46228-4, min. cross section: 0.14 mm², max. cross section: 10 mm², for TWIN ferrules up to 2 x 4 mm², automatic cross section adjustment, rotating die, lateral and frontal insertion, compression: trapezoidal crimp, black.

Features

  • Crimping at difficult-to-access points, thanks to rotating die
  • Comfortable to use, thanks to low grip span with optimum manual force progression
  • Process reliability, thanks to pressure lock and self-adjusting die
Technical specifications
Crimping Range (AWG) AWG 26-8
Crimping Range (mm²) 0.14-10 mm²
Suitable for wire end ferrules
Weight 305 g
Length 180 mm
Logistics
Country of origin SE
Customs tariff number 82032000
Compliance
RoHS conform not_relevant
Date of RoHS guidelines 3/31/15
SVHC free Yes
