1200101 | Phoenix Contact

Crimping pliers for wire end ferrules, 0.5-2.5 mm², AWG 20-14, Phoenix Contact 1200101

Order No.: 64P7405
EAN: 4055626042381
MPN:
1200101
CRIMPFOX 4 IN 1
Series: CRIMPFOX
Phoenix Contact

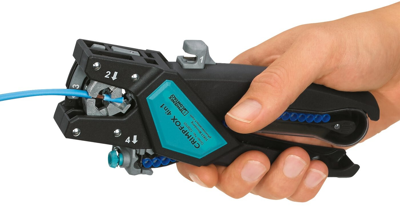

1200101 Phoenix Contact Crimping and Cable Lug Pliers Image 1

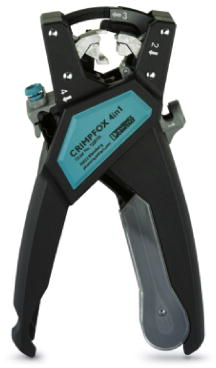

1200101 Phoenix Contact Crimping and Cable Lug Pliers Image 2

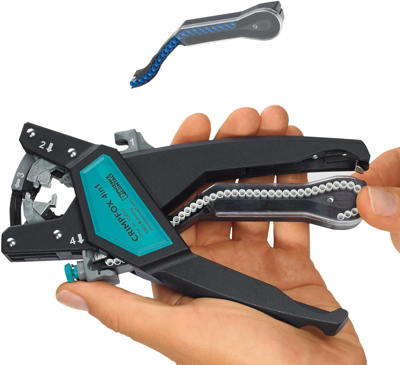

1200101 Phoenix Contact Crimping and Cable Lug Pliers Image 3

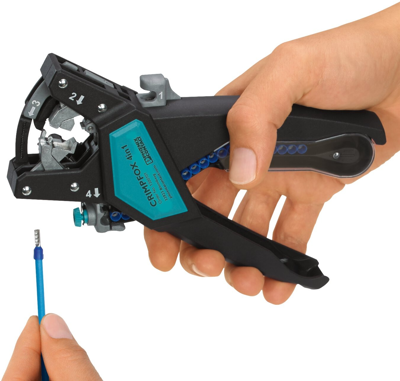

1200101 Phoenix Contact Crimping and Cable Lug Pliers Image 4
1200101 Phoenix Contact Crimping and Cable Lug Pliers Image 5
Image may differ
Unit Price (€ / pc.)
299.2731 € *
Available: 0 pcs.
Available in 10 days: 42 pcs.
Leadtime: 2 Weeks **
Total Price:
299.27 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
299.2731 €

Multi-function tool, 1200101, Phoenix Contact

Tool for processing ferrules according to DIN 46228-4, 0.5 mm² to 2.5 mm², equipped with pressure lock, magazine, cutting, stripping, twisting, and crimping unit. Robust and durable due to use of resistant plastics and annealed metals

Features

  • Integrated pressure lock ensures consistently high-quality crimping
  • Up to 30% time savings since the process steps required for assembling conductors can be carried out using only one tool
  • Visualized process flows directly on the pliers simplify operation
Technical specifications
Crimping Range (AWG) AWG 20-14
Crimping Range (mm²) 0.5-2.5 mm²
Suitable for wire end ferrules
Weight 240 g
Length 180 mm
Logistics
Country of origin DE
Customs tariff number 82032000
Compliance
RoHS conform not_relevant
Date of RoHS guidelines 3/31/15
SVHC free Yes
