1212034 | Phoenix Contact

Crimping pliers for wire end ferrules, 0.25-6.0 mm², AWG 24-10, Phoenix Contact 1212034

Order No.: 64P7411
EAN: 4046356453813
MPN:
1212034
CRIMPFOX 6
Series: CRIMPFOX
Phoenix Contact

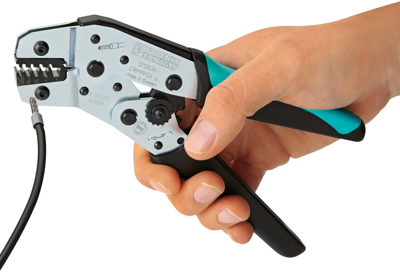

1212034 Phoenix Contact Crimping and Cable Lug Pliers Image 1

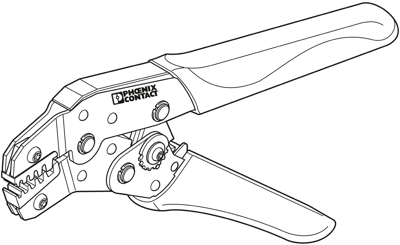

1212034 Phoenix Contact Crimping and Cable Lug Pliers Image 2

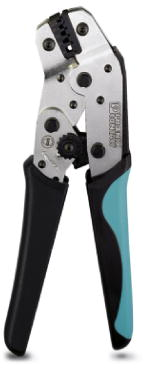

1212034 Phoenix Contact Crimping and Cable Lug Pliers Image 3
Image may differ
Unit Price (€ / pc.)
179.5472 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
179.55 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
179.5472 €

Crimping pliers, 1212034, Phoenix Contact

Crimping pliers, for ferrules without insulating collar according to DIN 46228 Part 1 and ferrules with insulating collar according to DIN 46228 Part 4, 0.25 mm² - 6.0 mm², lateral entry, trapezoidal crimp.

Features

  • All ferrules can be optimally crimped with a minimum amount of effort even in the case of large conductor cross sections
  • Unlockable pressure lock
  • Comprehensive range of crimping pliers
  • Consistently high crimping quality
  • Marked die stations for precise processing of corresponding cross sections
Technical specifications
Crimping Range (AWG) AWG 24-10
Crimping Range (mm²) 0.25-6.0 mm²
Suitable for wire end ferrules
Weight 358 g
Length 198 mm
Logistics
Country of origin SE
Customs tariff number 82032000
Compliance
RoHS conform not_relevant
Date of RoHS guidelines 3/31/15
SVHC free Yes
