1212046 | Phoenix Contact

Crimping pliers for wire end ferrules, 0.14-6.0 mm², AWG 26-10, Phoenix Contact 1212046

Order No.: 64P7414
EAN: 4046356455749
MPN:
1212046
CRIMPFOX 6H
Series: CRIMPFOX
Phoenix Contact
1212046 Phoenix Contact Crimping and Cable Lug Pliers
Image may differ
Unit Price (€ / pc.)
212.8553 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
212.86 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
212.8553 €

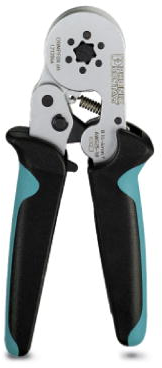

Crimping pliers, 1212046, Phoenix Contact

Crimping pliers, for ferrules without insulating collar according to DIN 46228 Part 1 and ferrules with insulating collar according to DIN 46228 Part 4, 0.14 mm² - 6 mm², unlockable pressure lock, lateral entry.

Features

  • The way in which the handles and the die are arranged means that the ferrules can be fitted however the tool is held
  • These compact crimping pliers have been designed to reduce effort when working
Technical specifications
Crimping Range (AWG) AWG 26-10
Crimping Range (mm²) 0.14-6.0 mm²
Suitable for wire end ferrules
Weight 380 g
Length 175 mm
Logistics
Country of origin DE
Customs tariff number 82032000
Compliance
RoHS conform not_relevant
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
