1213176 | Phoenix Contact
Crimping pliers for wire end ferrules, 0.14-10 mm², AWG 26-8, Phoenix Contact 1213176
Unit Price (€ / pc.)
212.8553 € *
Available: 0 pcs.
Leadtime: 4 Weeks **

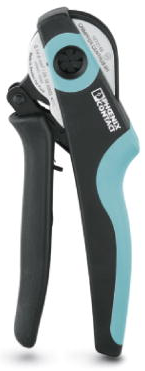

Crimping pliers, 1213176, Phoenix Contact
Crimping pliers, laser-inscribed to customer specifications, pliers and properties as in CRIMPFOX CENTRUS 10H.
Features
- Pressure lock ensures consistently high quality crimping results
- Ergonomic handle design ensures comfortable, fatigue-free handling
- Up to 30 % lower actuation force, thanks to optimized leverage
- With a particularly small handle width, the tool fits perfectly in your hand
- Sturdy plastic guard over the head of the pliers protects the tool against damage caused by dropping
Technical specifications
| Crimping Range (AWG) | AWG 26-8 | |
| Crimping Range (mm²) | 0.14-10 mm² | |
| Suitable for | wire end ferrules | |
| Weight | 380 g | |
| Length | 180 mm |
Download
Logistics
| Country of origin | SE |
| Customs tariff number | 82032000 |
Compliance
| RoHS conform | not_relevant |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
