2906219 | Phoenix Contact
Connection cable, 20 m, D-SUB socket, 37 pole to open end, 2906219
Unit Price (€ / pc.)
330.4511 € *
Available: 0 pcs.
Leadtime: 9 Weeks **
Cable, 2906219, Phoenix Contact

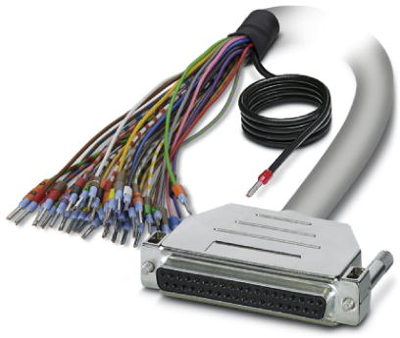

Assembled shielded round cable, Connection 1: Single wires (37-positions). The wires are marked and fitted with ferrules. The braided shield is routed to a separate cable end. Connection 2: D-SUB socket strip (1x37-positions), Cable length: 20 m.
Features
- Individual wire marking
- Screw connection
- Open end at one end
- Shield connection
Technical specifications
| Anschluss (1) | D-SUB-Buchse, 37-polig | |
| Anschluss (2) | offenes Ende | |
| Ausführung | Verbindungsleitung | |
| Farbe | grau | |
| Kabel | AWG 24, geschirmt | |
| Kabellänge | 20 m | |
| Pinbelegung | 1:1 |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85444290 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
