2926166 | Phoenix Contact

Connecting line, 1 m, D-SUB socket, 25 pole to open end, 2926166

Order No.: 64P3557
EAN: 4046356546829
MPN:
2926166
CABLE-D-25SUB/F/OE/0,25/S/1,0M
Series: CABLE-D
Phoenix Contact
2926166 Phoenix Contact D-Sub Cables
Image may differ
Unit Price (€ / pc.)
82.5503 € *
Available: 0 pcs.
Available in 10 days: 83 pcs.
Leadtime: 2 Weeks **
Total Price:
82.55 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
82.5503 €

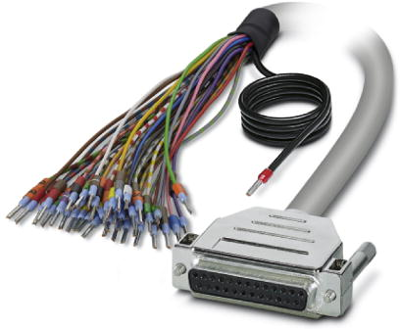

Cable, 2926166, Phoenix Contact

Assembled shielded round cable, Connection 1: Single wires (25-positions). The wires are marked and fitted with ferrules. The braided shield is routed to a separate cable end. Connection 2: D-SUB socket strip (1x25-positions), Cable length: 1 m.

Features

  • Individual wire marking
  • Screw connection
  • Open end at one end
  • Shield connection
Technical specifications
Connection (1) D-SUB socket, 25 pole
Connection (2) open end
Version connecting line
Colour gray
Cable type AWG 24, shielded
Cable length 1 m
Pin configuration 1:1
Logistics
Country of origin DE
Customs tariff number 85444290
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
