2926218 | Phoenix Contact
Connection cable, 6 m, D-Sub socket, 25 pole to open end, 2926218
Unit Price (€ / pc.)
133.3871 € *
Available: 0 pcs.
Available in 10 days: 61 pcs.
Leadtime: 2 Weeks **
Cable, 2926218, Phoenix Contact

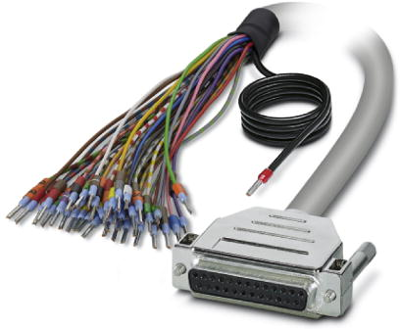

Assembled shielded round cable, Connection 1: Single wires (25-positions). The wires are marked and fitted with ferrules. The braided shield is routed to a separate cable end. Connection 2: D-SUB socket strip (1x25-positions), Cable length: 6 m.
Features
- Individual wire marking
- Screw connection
- Open end at one end
- Shield connection
Technical specifications
| Version | Verbindungsleitung | |
| Connection (1) | D-Sub-Buchse, 25-polig | |
| Connection (2) | offenes Ende | |
| Cable length | 6 m | |
| Colour | grau | |
| Cable type | AWG 24, geschirmt | |
| Pin configuration | 1:1 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
