2926564 | Phoenix Contact

Connecting line, 6 m, D-Sub plug, 25 pole to open end, 2926564

Order No.: 64P3572
EAN: 4046356548229
MPN:
2926564
CABLE-D-25SUB/M/OE/0,25/S/6,0M
Series: CABLE-D
Phoenix Contact
2926564 Phoenix Contact D-Sub Cables
Image may differ
Unit Price (€ / pc.)
133.3871 € *
Available: 0 pcs.
Available in 10 days: 6 pcs.
Leadtime: 2 Weeks **
Total Price:
133.39 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
133.3871 €

Cable, 2926564, Phoenix Contact

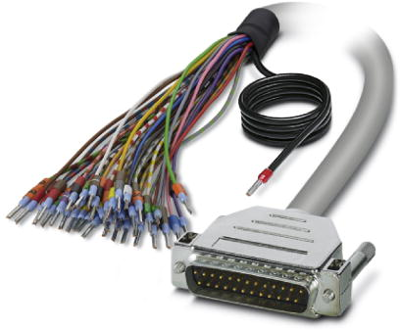

Assembled shielded round cable, Connection 1: Single wires (25-positions). The wires are marked and fitted with ferrules. The braided shield is routed to a separate cable end. Connection 2: D-SUB pin strip (1x25-positions), Cable length: 6 m.

Features

  • Individual wire marking
  • Screw connection
  • Open end at one end
  • Shield connection
Technical specifications
Connection (1) D-Sub plug, 25 pole
Connection (2) open end
Version connecting line
Colour gray
Cable type AWG 24, shielded
Cable length 6 m
Pin configuration 1:1
Logistics
Country of origin DE
Customs tariff number 85444290
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
