1655234 | Phoenix Contact

D-Sub plug, 44 pole, high density, equipped, straight, solder cup, 1655234

Order No.: 62P5317
EAN: 4046356029179
MPN:
1655234
VS-25-ST-DSUB-HD-EG
Series: VS-..

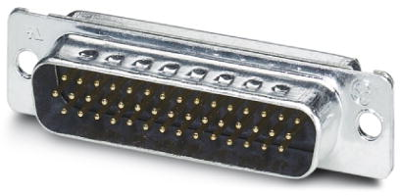

1655234 Phoenix Contact D-Sub Connectors Image 1

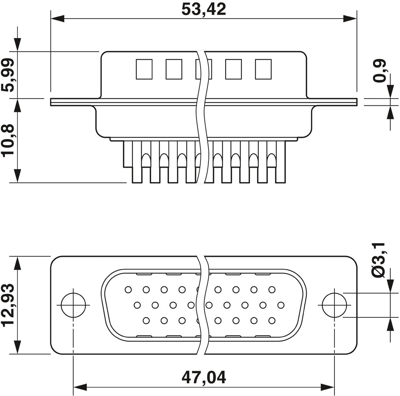

1655234 Phoenix Contact D-Sub Connectors Image 2
Image may differ
Unit Price (€ / pc.)
23.4430 € *
Available: 0 pcs.
Next delivery: 7 pcs. on 2025-05-02
Available in 10 days: 74 pcs.
Leadtime: 2 Weeks **
Total Price:
23.44 € *
Price list
Quantity
Price per unit*
1 pcs.
23.4430 €
10 pcs.
21.5747 €
50 pcs.
19.8373 €
100 pcs.
18.0523 €
*incl. VAT plus shipping costs
**Subject to prior sale

D-Sub plug, 1655234, Phoenix Contact

D-SUB contact insert, shell size 3, with 44 signal contacts, type of contact pin, with solder cup, straight, fixing with a 3 mm hole, for panel mounting frame and sleeve housing VS-25.

Features

  • Unshielded
  • Contact material: Copper alloy
  • Overvoltage category: III
  • Pollution degree: 2
  • Flammability class according to UL 94: V0
Technical specifications
Performance level 3
Version Stiftleiste
Additional parts bestückt
Contact connection Lötkelch
Assembly gerade
Pole image High density
Pin number 44-polig
Type of locking Durchgangsloch
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Blei
