1688861 | Phoenix Contact

D-Sub socket, 9 pole, standard, equipped, straight, crimp connection, 1688861

Order No.: 62P5181
EAN: 4017918822996
MPN:
1688861
VS-09-BU-DSUB-CD-B
Series: VS-..

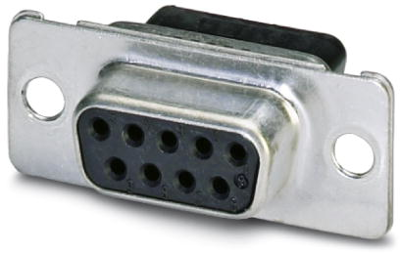

1688861 Phoenix Contact D-Sub Connectors Image 1
1688861 Phoenix Contact D-Sub Connectors Image 2
Image may differ
Unit Price (€ / pc.)
4.3554 € *
Available: 98 pcs.
Available in 10 days: 6,870 pcs.
Leadtime: 2 Weeks **
Total Price:
4.36 € *
Price list
Quantity
Price per unit*
1 pcs.
4.3554 €
10 pcs.
4.0103 €
50 pcs.
3.6533 €
100 pcs.
3.2844 €
*incl. VAT plus shipping costs
**Subject to prior sale

D-Sub socket, 1688861, Phoenix Contact

D-SUB contact carrier, shell size 1, for 9 signal contacts, contact type female, for crimp contacts, straight, mounting by means of 3 mm hole, for mounting frame and shell housing VS-09.

Features

  • Overvoltage category: III
  • Pollution degree: 2
  • Flammability class according to UL 94: V0
  • Housing material: Steel, tin-plated
Technical specifications
Performance level 1
Version Buchsenleiste
Additional parts bestückt
Contact connection Crimpanschluss
Assembly gerade
Pole image Standard
Pin number 9-polig
Type of locking Durchgangsloch
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
