1688874 | Phoenix Contact

D-Sub plug, 15 pole, standard, equipped, straight, solder cup, 1688874

Order No.: 62P5261
EAN: 4017918823023
MPN:
1688874
VS-15-ST-DSUB-EG
Series: VS-..

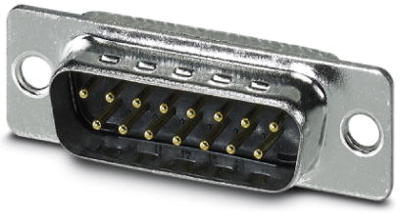

1688874 Phoenix Contact D-Sub Connectors Image 1
1688874 Phoenix Contact D-Sub Connectors Image 2
Image may differ
Unit Price (€ / pc.)
6.9139 € *
Available: 0 pcs.
Available in 10 days: 118 pcs.
Leadtime: 2 Weeks **
Total Price:
69.14 € *
*incl. VAT plus shipping costs
**Subject to prior sale
10 pcs.
6.9139 €

D-Sub plug, 1688874, Phoenix Contact

D-SUB contact insert, shell size 2, with 15 signal contacts, type of contact pin, with solder cup, straight, fixing with a 3 mm hole, for panel mounting frame and sleeve housing VS-15.

Features

  • Unshielded
  • Contact material: Copper alloy
  • Overvoltage category: III
  • Pollution degree: 2
  • Flammability class according to UL 94: V0
Technical specifications
Version Stiftleiste
Additional parts bestückt
Contact connection Lötkelch
Assembly gerade
Pole image Standard
Pin number 15-polig
Type of locking Durchgangsloch
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Blei
