1689954 | Phoenix Contact

D-Sub plug, 25 pole, standard, equipped, straight, crimp connection, 1689954

Order No.: 62P5311
EAN: 4017918914356
MPN:
1689954
VS-25-ST-DSUB-CD-B
Series: VS-..

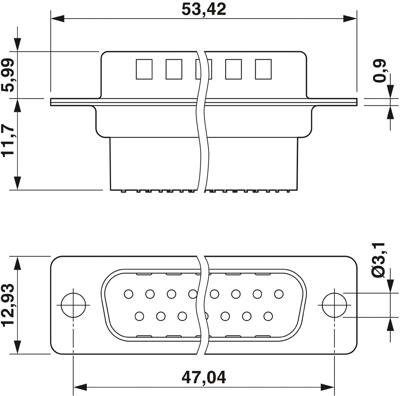

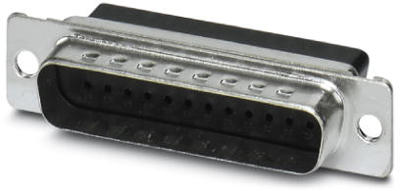

1689954 Phoenix Contact D-Sub Connectors Image 1
1689954 Phoenix Contact D-Sub Connectors Image 2
Image may differ
Unit Price (€ / pc.)
5.1884 € *
Available: 0 pcs.
Available in 10 days: 340 pcs.
Leadtime: 2 Weeks **
Total Price:
5.19 € *
Price list
Quantity
Price per unit*
1 pcs.
5.1884 €
10 pcs.
4.7600 €
50 pcs.
4.3435 €
100 pcs.
3.9151 €
*incl. VAT plus shipping costs
**Subject to prior sale

D-Sub plug, 1689954, Phoenix Contact

D-SUB contact carrier, shell size 3, for 25 signal contacts, type of contact pin, for crimp contacts, straight, fixing with a 3 mm hole, for panel mounting frame and sleeve housing VS-25.

Features

  • Unshielded
  • Contact material: Copper alloy
  • Overvoltage category: III
  • Pollution degree: 2
  • Flammability class according to UL 94: V0
Technical specifications
Performance level 1
Version Stiftleiste
Additional parts bestückt
Contact connection Crimpanschluss
Assembly gerade
Pole image Standard
Pin number 25-polig
Type of locking Durchgangsloch
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
