2910121 | Phoenix Contact
DC/DC converter, 24 VDC, 480 W, 1 output, 24 to 29.5 VDC, 94.7 % efficiency, 2910121
Unit Price (€ / pc.)
448.63 € *
Available: 0 pcs.
Available in 10 days: 419 pcs.
Leadtime: 2 Weeks **
DC/DC converter, 2910121, Phoenix Contact

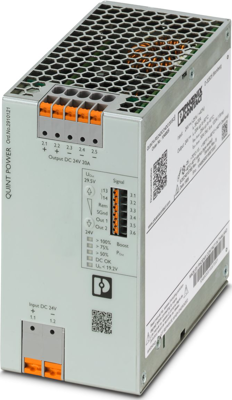

Primary-switched DC/DC converter, QUINT POWER, DIN rail mounting, SFB Technology (Selective Fuse Breaking), input: 24 V DC, output: 24 V DC / 20 A.
Features
- Most powerful output side: easy system expansion, reliable heavy load startup and miniature circuit breaker tripping
- Most comprehensive signaling: preventive function monitoring reports critical operating states before errors occur
- Free selection between Push-in and screw connection
Technical specifications
| Number of outputs | 1 | |
| Output voltage DC | 24 to 29.5 VDC | |
| Output current | 20 A | |
| Design | DIN rail | |
| Width | 70 mm | |
| Input voltage AC | 24 VDC | |
| Height | 130 mm | |
| Power | 480 W | |
| efficiency | 94.7 % |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85366930 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
