2702233 | Phoenix Contact

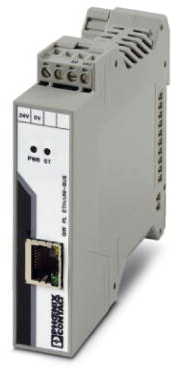

HART ethernet multiplexer for modular gateway, (W x H x D) 22.5 x 99 x 114.5 mm, 2702233

Order No.: 64P6801
EAN: 4055626067049
MPN:
2702233
GW PL ETH/UNI-BUS
Series: GW
Phoenix Contact
2702233 Phoenix Contact Device servers and gateways
Image may differ
Unit Price (€ / pc.)
1,968.5575 € *
Available: 0 pcs.
Available in 10 days: 15 pcs.
Leadtime: 2 Weeks **
Total Price:
1,968.56 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
1,968.5575 €

Ethernet HART multiplexer, 2702233, Phoenix Contact

Ethernet head station for modular HART gateway. Connect up to five GW PL HART-BUS expansion modules to communicate with up to 40 HART devices. Supports Modbus TCP, OPC UA, PROFINET, HART IP, FDT/DTM and Arcom.

Features

  • Available communication DTM integrates into an FDT/DTM container and provides the ability to remotely configure HART instruments
  • Extended temperature range of -40 °C to +70 °C
  • Independent HART controller per channel ensures fastest update rates
  • Monitor PV, SV, TV, QV HART variables using Modbus TCP or PROFINET
  • Monitor up to 14 HART variables using OPC UA
  • Supports Arcom for simple integration into Emerson AMS
Technical specifications
Version ethernet multiplexer
Width 22.5 mm
Suitable for modular gateway
Height 99 mm
Assembly DIN rail
Depth 114.5 mm
Logistics
Country of origin DE
Customs tariff number 85176200
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
