2701532 | Phoenix Contact

Distributed I/O device for modbus TCP, Inputs: 8, Outputs: 8, (W x H x D) 60 x 185 x 30.5 mm, 2701532

Order No.: 64P8382
EAN: 4046356763806
MPN:
2701532
AXL E ETH DI8 DO8 M12 6P
Series: AXIOLINE E
Phoenix Contact
2701532 Phoenix Contact Digital modules
Image may differ
Unit Price (€ / pc.)
561.6919 € *
Available: 0 pcs.
Available in 10 days: 84 pcs.
Leadtime: 2 Weeks **
Total Price:
561.69 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
561.6919 €

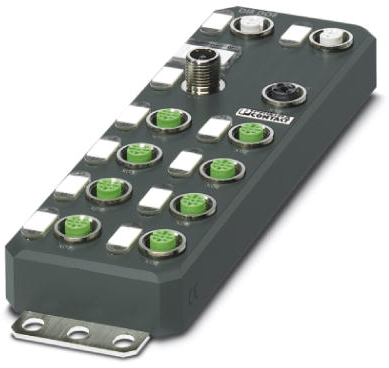

Digital module, 2701532, Phoenix Contact

Axioline E, Digital I/O device, Ethernet, M12 fast connection technology, Digital inputs: 8, 24 VDC, Connection technology: 4-conductor, Digital outputs: 8, 24 VDC, Connection technology: 3-conductor, Plastic housing, Degree of protection: IP65/IP67.

Features

  • Transmission speed of 10 Mbps and 100 Mbps
  • Diagnostic and status indicators
  • Short-circuit and overload protection of the sensor supply
Technical specifications
Number of digital outputs 8
Number of digital inputs 8
Version Distributed I/O device
Width 60 mm
Suitable for modbus TCP
Height 185 mm
Assembly wall mounting
Depth 30.5 mm
Logistics
Country of origin DE
Customs tariff number 85176200
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
