2701813 | Phoenix Contact

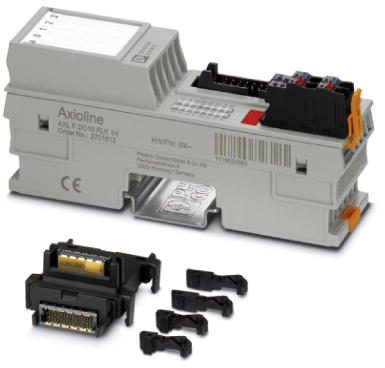

I/O module for Axioline F station, Outputs: 16, (W x H x D) 35 x 126.1 x 54 mm, 2701813

Order No.: 64P8473
EAN: 4046356881302
MPN:
2701813
AXL F DO16 FLK 1H
Series: Axioline F
Phoenix Contact
2701813 Phoenix Contact Digital modules
Image may differ
Unit Price (€ / pc.)
215.8303 € *
Available: 0 pcs.
Available in 10 days: 31 pcs.
Leadtime: 2 Weeks **
Total Price:
215.83 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
215.8303 €

Digital module, 2701813, Phoenix Contact

Axioline F, Digital output module, Digital outputs: 16, 24 VDC, 500 mA, Connection technology: FLK connector (20-pos.), Transmission speed in the local bus: 100 Mbps, Degree of protection: IP20, including bus base module and Axioline F connector.

Features

  • 24 VDC, 500 mA
  • 1 FLK connection, 20-pos.
  • Minimum update time of < 100 μs
  • Device rating plate stored
  • Diagnostic and status indicators
Technical specifications
Number of digital outputs 16
Version I/O module
Width 35 mm
Suitable for Axioline F station
Height 126.1 mm
Assembly DIN rail
Depth 54 mm
Logistics
Country of origin DE
Customs tariff number 85389091
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
