2878340 | Phoenix Contact

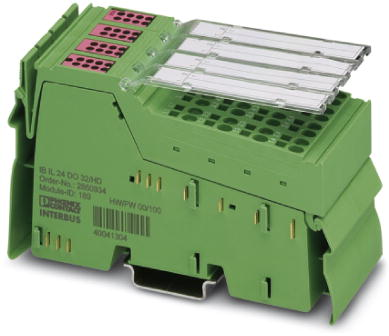

Output terminal for inline station, Outputs: 32, (W x H x D) 48.8 x 119.8 x 71.5 mm, 2878340

Order No.: 64P8948
EAN: 4046356048538
MPN:
2878340
IB IL 24 DO 32/HD-NPN-PAC
Series: IB IL
Phoenix Contact
2878340 Phoenix Contact Digital modules
Image may differ
Unit Price (€ / pc.)
353.9179 € *
Available: 0 pcs.
Available in 10 days: 127 pcs.
Leadtime: 2 Weeks **
Total Price:
353.92 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
353.9179 €

Digital module, 2878340, Phoenix Contact

Inline, Digital output terminal, Digital outputs: 32 (NPN), 24 VDC, Connection technology: 1-conductor, Transmission speed in the local bus: 500 kbps, Degree of protection: IP20, including Inline connector and marking fields.

Features

  • Nominal current per output: 500 mA
  • Total current of the terminal: 8 A
  • Short-circuit and overload-protected outputs
Technical specifications
Number of digital outputs 32
Version output terminal
Width 48.8 mm
Suitable for inline station
Height 119.8 mm
Assembly DIN rail
Depth 71.5 mm
Logistics
Country of origin DE
Customs tariff number 85389091
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
