2278966 | Phoenix Contact

Plastic upper part of housing, (L x W x H) 45.85 x 22.6 x 99 mm, green, IP20, 2278966

Order No.: 64P1313
EAN: 4046356328722
MPN:
2278966
ME 22,5 OTU-MKDSO GN
Series: ME
Phoenix Contact
2278966 Phoenix Contact DIN-Rail Enclosures
Image may differ
Unit Price (€ / pc.)
1.8207 € *
Available: 0 pcs.
Leadtime: 6 Weeks **
Total Price:
1.82 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
1.8207 €

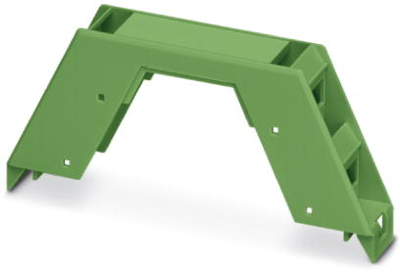

Upper part of housing, 2278966, Phoenix Contact

DIN rail housing, upper housing part for PCB terminal blocks with screw connection, Width: 22.6 mm, Height: 99 mm, Depth: 45.85 mm, Color: green (6021)

Features

  • Tool-free mounting
  • Flammability rating V0 in accordance with UL 94
  • Variety of connection technology
  • Can be mounted on the DIN rail
  • With integrated or DIN-rail-mountable bus connector as an option
Technical specifications
Width 22.6 mm
Colour green
Height 99 mm
Length 45.85 mm
Material plastic
Degree of protection (IP) IP20
Logistics
Country of origin DE
Customs tariff number 85472000
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
