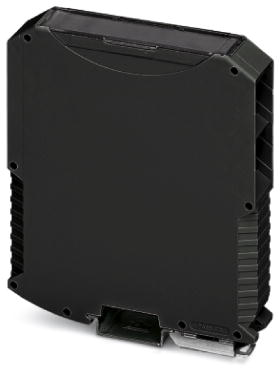

2869249 | Phoenix Contact

PA DIN rail enclosure, (L x W x H) 113.65 x 22.6 x 99 mm, black, IP20, 2869249

Order No.: 64P1497
EAN: 4017918927387
MPN:
2869249
ME MAX 22,5 G 2-2 BK
Series: ME MAX
Phoenix Contact
2869249 Phoenix Contact DIN-Rail Enclosures
Image may differ
Unit Price (€ / pc.)
8.1991 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
8.20 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
8.1991 €

Electronic housing, 2869249, Phoenix Contact

DIN rail housing, complete housing with metal foot catch, tall design and without vents, Width: 22.6 mm, Height: 99 mm, Depth: 113.65 mm, Color: black (9005), Cross connection: DIN rail connector (optional), number of positions cross connector: 5

Features

  • Easy installation
  • Variety of connection technology
  • Can be mounted on the DIN rail
  • With DIN-rail-mountable bus connector and power connector system as an option
  • Transparent front cover can be swiveled
Technical specifications
Width 22.6 mm
Colour black
Height 99 mm
Length 113.65 mm
Material PA
Degree of protection (IP) IP20
Logistics
Country of origin DE
Customs tariff number 85389099
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
